1-1000t/h
≤1020mm
Applicable materials：limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, pebble, pozzolana, Iron ore, copper ore, gold ore, manganese ore, etc.
24-hour consultation hotline：+8618595818878

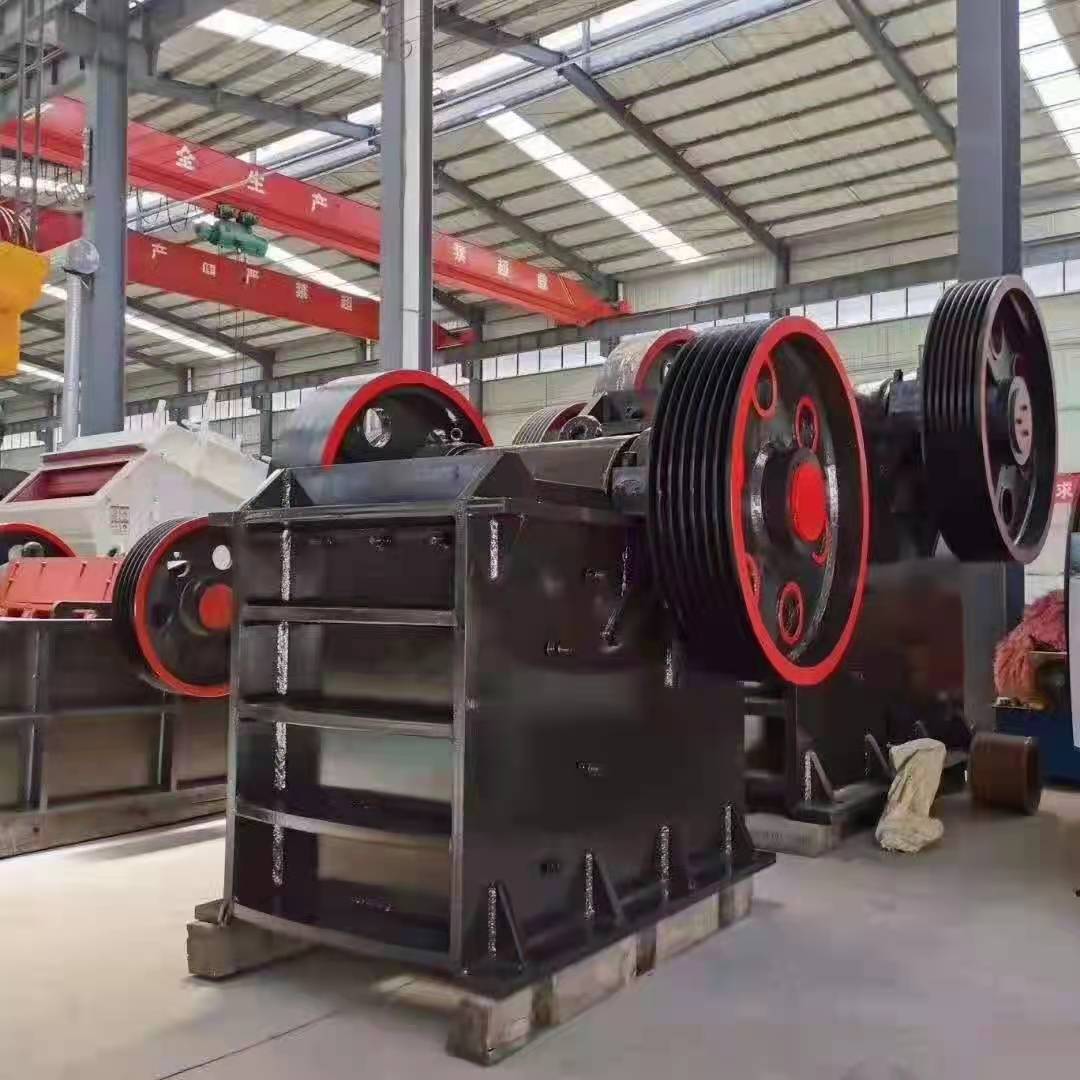

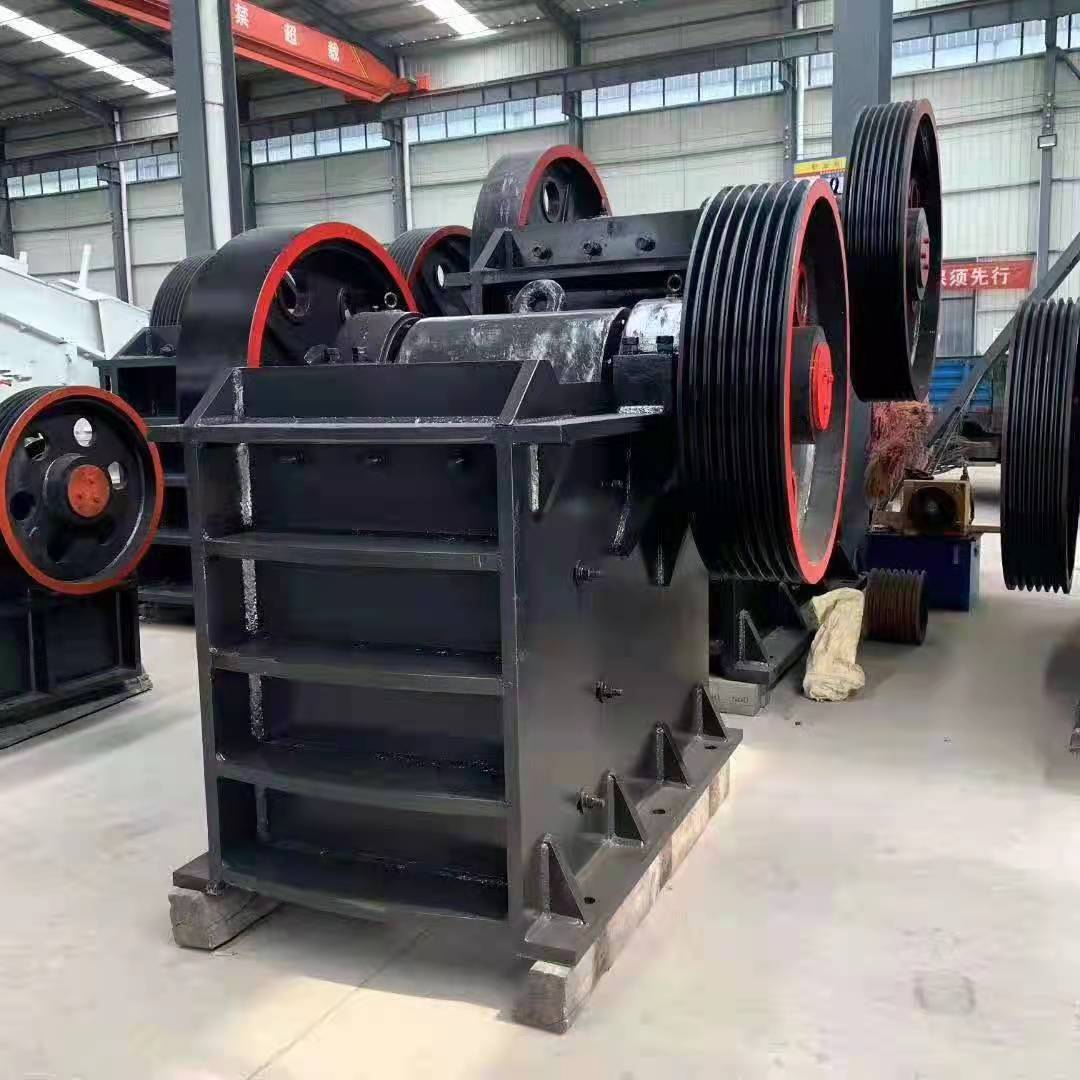

Jaw crusher (jaw crusher) is famous for its simplicity and reliability in the mining machinery industry. Since the end of the 19th century, jaw crusher has been widely used in ore crushing, construction aggregate processing and other industries. With the continuous development of production technology, advanced manufacturing technology and precise manufacturing materials have further consolidated the leading position of jaw crusher in the field of mining machinery. The jaw crusher (jaw crusher) is used for the first process of crushing various minerals and rocks. The Expo machine jaw crusher adopts the design principle of the traditional double pendulum jaw crusher, which has two major advantages: simple structure, easy operation and maintenance; It has stable performance and can process various ores with compressive strength not higher than 320MPa to medium grain size at one time. It often forms a complete set of sand production line together with cone crusher, impact crusher, sand making machine, etc. It is widely used in mining, metallurgy, chemical industry, building materials, power, water conservancy, transportation and other fields.
1. High crushing ratio, well-distributed final product size.
2. Discharge opening of the jaw crusher is adjustable reliably within a
wide range through the stuffing of shim, thus it can meet various requirements
of customers.
3. Lubrication system of it is safe and reliable, which boasts an easy and
convenient maintenance.
4. Simple structure, reliable performance, low maintenance cost.
5. Little dust and low noise.

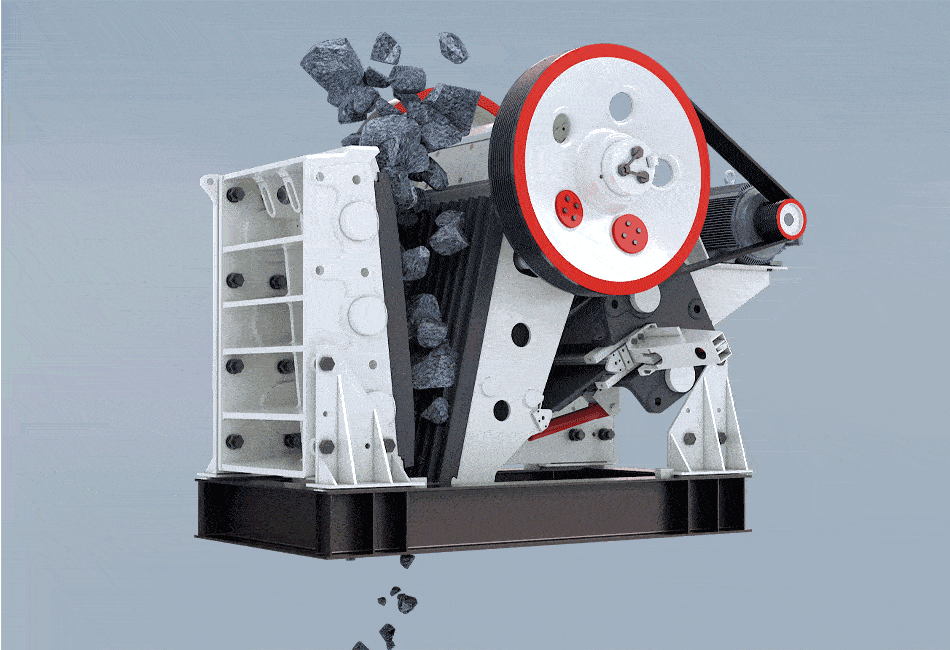

The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Model | Feed opening (mm) | Max. Feeding Size (mm) | Adjustable Discharge opening (mm) | Capacity (t/h) | Motor Power (kW) | Overall Dimensions (mm) | Weight (t) |
PE250×400 | 250X400 | 200 | 20-60 | 5-20 | 15(20) | 1150×1275×1240 | 2.8 |
PE250x1000 | 250X1000 | 210 | 15-50 | 15-50 | 30(40) | 2790x2670x1380 | 6.5 |
PE400×600 | 400X600 | 350 | 40-100 | 15-60 | 30(40) | 1700×1732×1653 | 6.5 |
PE500×750 | 500X750 | 425 | 50-100 | 50-100 | 55(75) | 2035×1921×2000 | 10.3 |
PE600×900 | 600X900 | 500 | 65-160 | 60-130 | 75(100) | 2290×2206×2370 | 16 |
PE750×1060 | 750X1060 | 630 | 80-140 | 110-250 | 110(150) | 2620×2302×3110 | 27 |
PE900×1200 | 900X1200 | 750 | 100-200 | 160-380 | 130(175) | 3789×2826×3025 | 46.5 |
PE1000×1200 | 1000X1200 | 850 | 200-300 | 315-550 | 130(175) | 3889×2826×3025 | 56 |
PE1200×1500 | 1200X1500 | 1000 | 150-350 | 400-800 | 200(270) | 4930X3148X3560 | 88 |
