Crawler type fine crushing mobile crushing stationIntroduce

Crawler type medium crushing and fine crushing mobile crushing station is a kind of crushing equipment with various rates, which is mainly used for secondary and tertiary crushing in urban demolition sites, construction waste treatment and other sites that need to be moved frequently. The track-type driving mode is adopted, with excellent technology and complete functions. Under complex terrain conditions, the equipment can be directly driven to any position on the work site without transportation. The grain size of finished products can be flexibly adjusted according to customer needs, with low cost and good benefits. Crawler type mobile crushing station can be customized to meet the production crushing operation of different scales, with a wide range of materials.

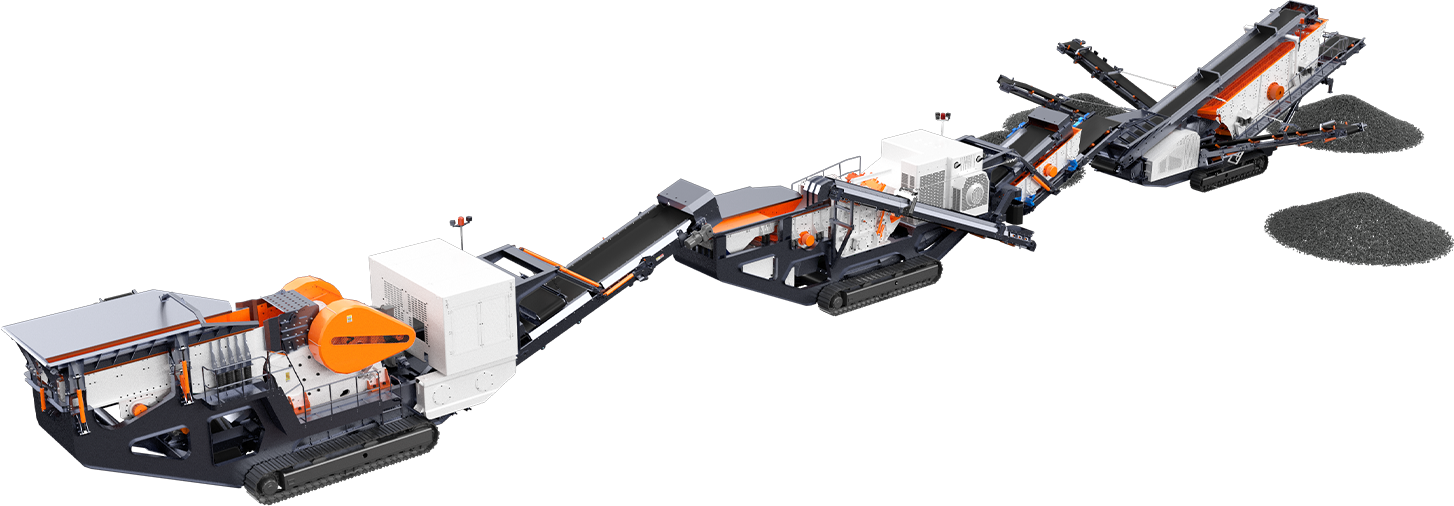

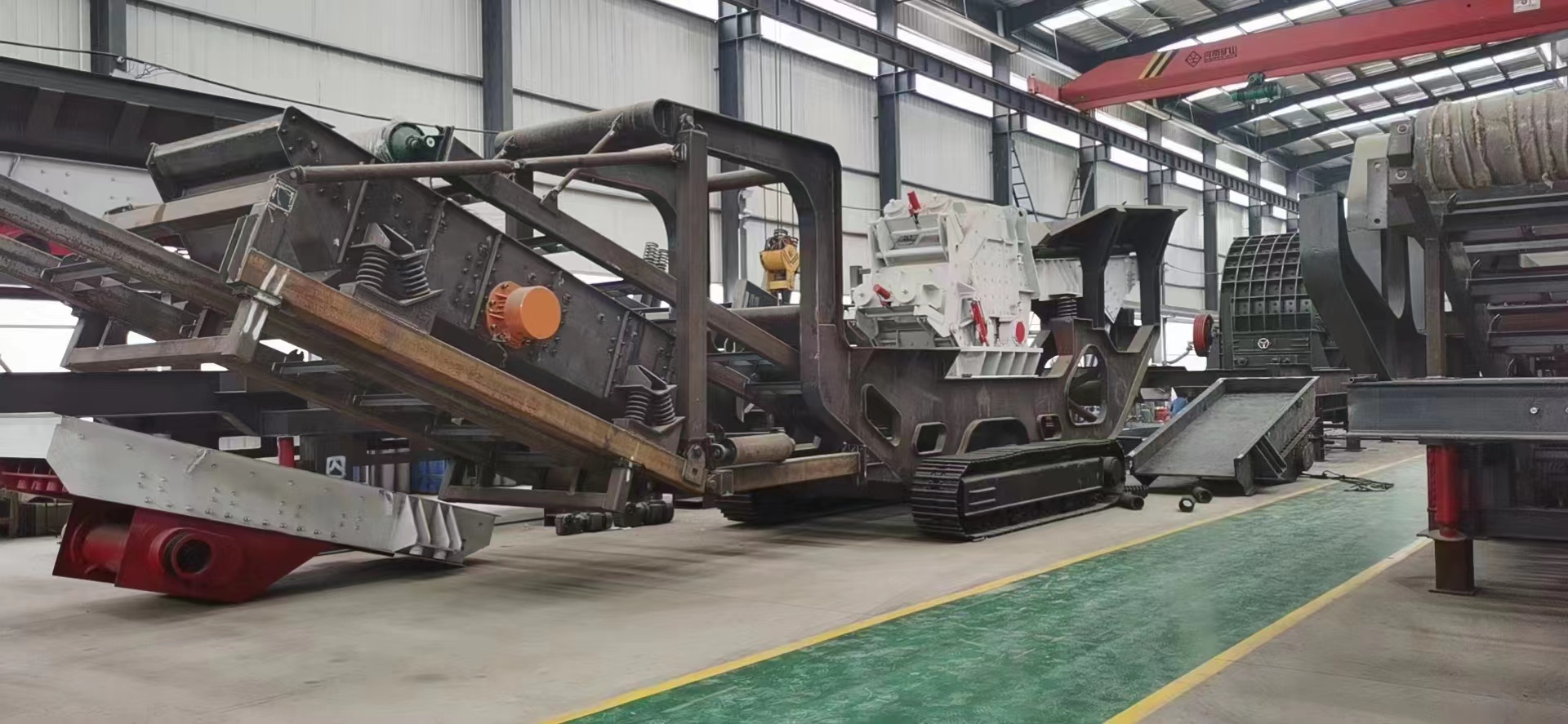

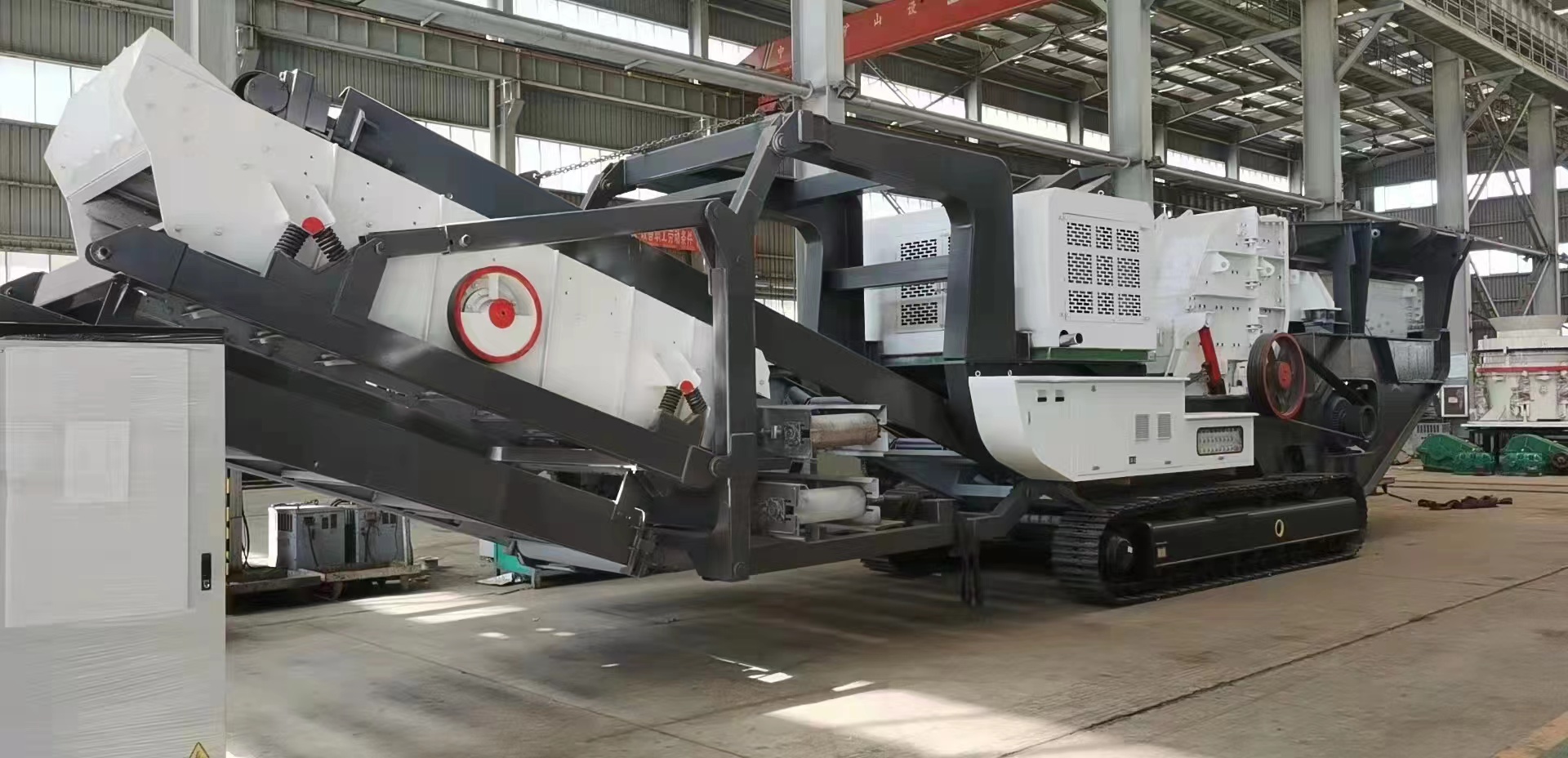

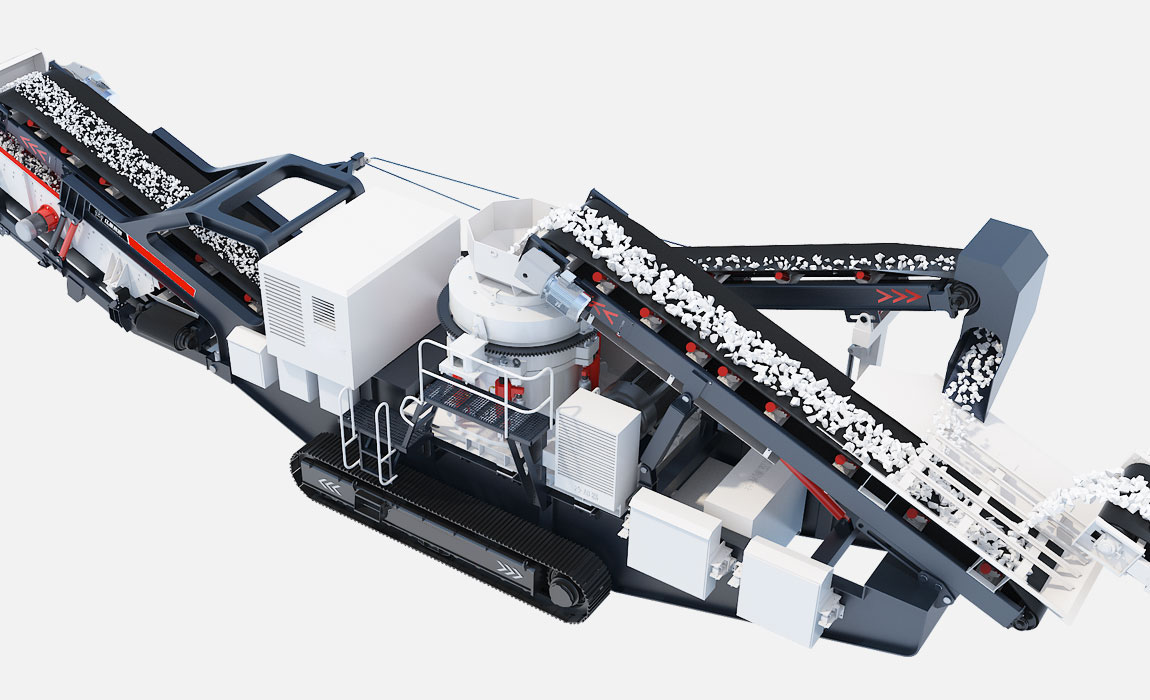

Picture display

Advantages and characteristics

1. with high strength and good trafficability, the chassis adopts crawler type full rigid ship type structure with high strength

2. light weight and small volume crawler type mobile crushing station products have the advantages of light weight and small volume

3. it can climb the slope to meet the crushing requirements of mines, hydropower stations, coal mines and other projects

4. customized production and crushing operations of different scales can be customized to meet customers' Personalized Customization

Working principle

The crawler type mobile crushing station is composed of crawler chassis, frame assembly, main machine and auxiliary equipment, power system and hydraulic electric control system. When moving, power is provided by the power system, and the crawler chassis is driven by the hydraulic and electric control system; During installation, the power system controls and drives the hydraulic cylinder through the hydraulic electric control system to automatically complete the equipment installation; During operation, the power system drives and controls the main machine and auxiliary equipment through the hydraulic and electric control system. The materials enter the main machine mounted on the crawler chassis and frame from the silo for crushing or screening, and are discharged through the integrated belt conveyor.

Technical Parameter

Technical Data//Model		Y3S1848	Y3S1860	Y3S2160
Transportation size (mm)		10100×2800×4350	11100×2820×4350	11100×3100×4350
Weight(t)		16	18	19
Tire Configuration		Dualaxial	Dualaxial	Dualaxial
Capacity(T/h)		50-250	60-300	80-400
Belt Conveyor Under Vibrating Screen		B800×7M	B800×8M	B1000×8M
Vibrating Screen		3YZS1848	3YZS1860	3YZS2160
Electric control	standard	control box + control panel	control box + control panel	control box + control panel
Electric control	Optional	Control box + LCD	Control box + LCD	Control box + LCD
Hydraulic leg	standard	4	4	4
Hydraulic leg	Optional	2	2	2
Hydraulic cyclinder	standard	0	0	0
Hydraulic cyclinder	optional	2	2	2
Genset (optional) (Kw)		120	120	120
